MOSFET 2N-CH 30V 16A 6-POWERPAIR

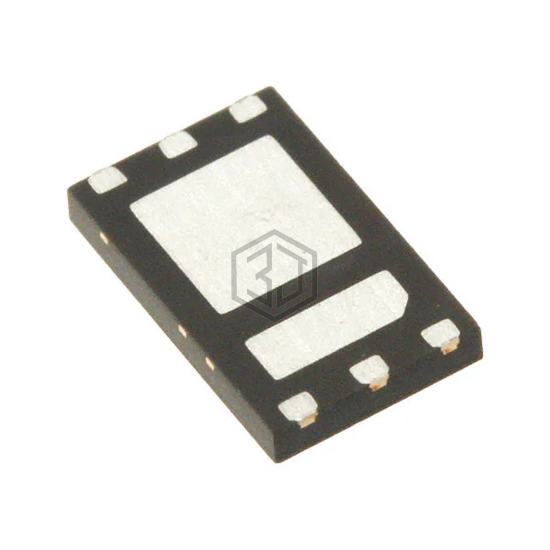

SIZ730DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET 2N-CH 30V 16A 6-POWERPAIR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerPair™, power - max 27W, 48W.
In Stock: 314
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | 2 N-Channel (Half Bridge) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 16A, 35A |
| Rds On (Max) @ Id, Vgs | 9.3mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 24nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 830pF @ 15V |
| Power - Max | 27W, 48W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-PowerPair™ |
| Supplier Device Package | 6-PowerPair™ |
Submit your RFQ for SIZ730DT-T1-GE3 and get a quote within 24 hours.
