MOSFET DL N-CH 30V POWERPAIR3X3

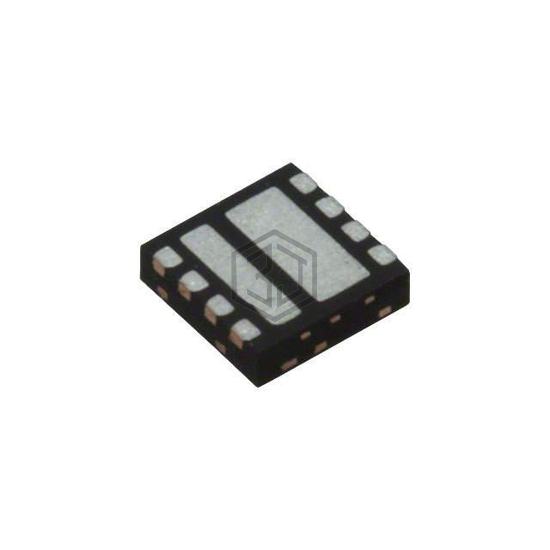

SIZ342DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET DL N-CH 30V POWERPAIR3X3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 3.6W, 4.3W.
In Stock: 5,989
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 15.7A (Ta), 100A (Tc) |
| Rds On (Max) @ Id, Vgs | 11.5mOhm @ 14A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 650pF @ 15V |
| Power - Max | 3.6W, 4.3W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-Power33 (3x3) |
Submit your RFQ for SIZ342DT-T1-GE3 and get a quote within 24 hours.
