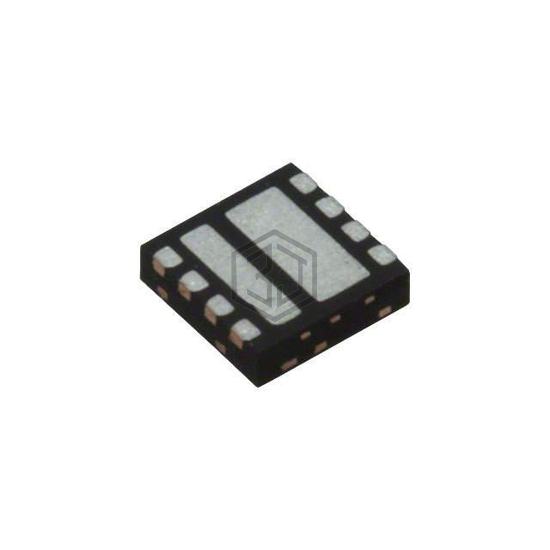

MOSFET DL N-CH 30V PPAIR 3 X 3
SIZ342ADT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET DL N-CH 30V PPAIR 3 X 3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 3.7W (Ta), 16.7W (Tc).
In Stock: 3,612
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 15.7A (Ta), 33.4A (Tc) |
| Rds On (Max) @ Id, Vgs | 9.4mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12.2nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 580pF @ 15V |
| Power - Max | 3.7W (Ta), 16.7W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-Power33 (3x3) |
Submit your RFQ for SIZ342ADT-T1-GE3 and get a quote within 24 hours.
