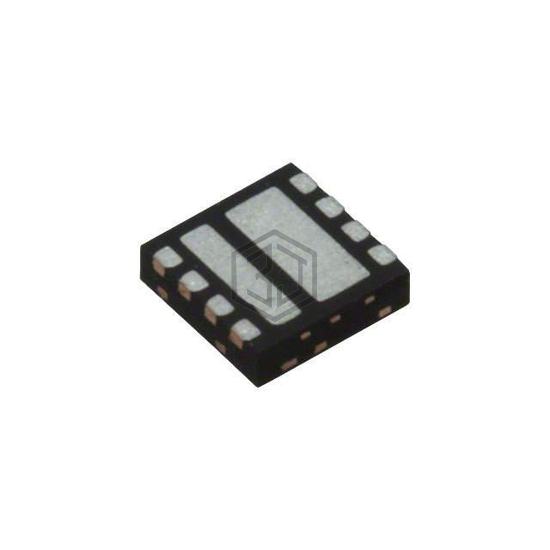

MOSFET DUAL N-CHAN 25V POWERPAIR
SIZ328DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET DUAL N-CHAN 25V POWERPAIR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 2.9W (Ta), 15W (Tc), 3.6W (Ta), 16.2W (Tc).
In Stock: 2,860
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 25V |
| Current - Continuous Drain (Id) @ 25°C | 11.1A (Ta), 25.3A (Tc), 15A (Ta), 30A (Tc) |
| Rds On (Max) @ Id, Vgs | 15mOhm @ 5A, 10V, 10mOhm @ 5A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6.9nC @ 10V, 11.3nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 325pF @ 10V, 600pF @ 10V |
| Power - Max | 2.9W (Ta), 15W (Tc), 3.6W (Ta), 16.2W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-Power33 (3x3) |
Submit your RFQ for SIZ328DT-T1-GE3 and get a quote within 24 hours.
