MOSFET 2N-CH 25V 30/40A 8POWER33

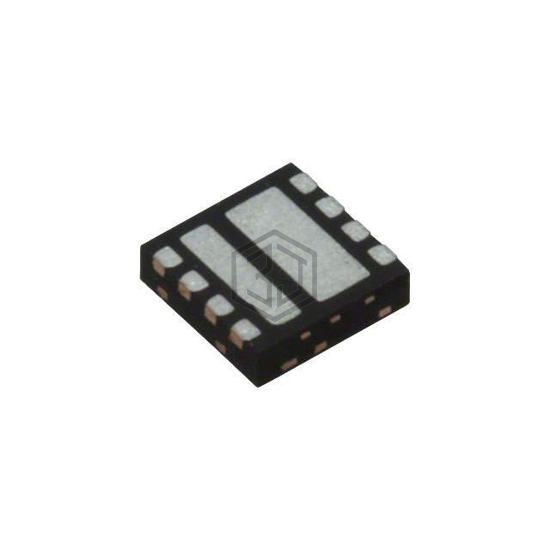

SIZ320DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET 2N-CH 25V 30/40A 8POWER33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 16.7W, 31W.
In Stock: 6,126
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 25V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc), 40A (Tc) |
| Rds On (Max) @ Id, Vgs | 8.3mOhm @ 8A, 10V, 4.24mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8.9nC @ 4.5V, 11.9nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 660pF @ 12.5V, 1370pF @ 12.5V |
| Power - Max | 16.7W, 31W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-Power33 (3x3) |
Submit your RFQ for SIZ320DT-T1-GE3 and get a quote within 24 hours.
