DUAL N-CHANNEL 100-V (D-S) MOSFE

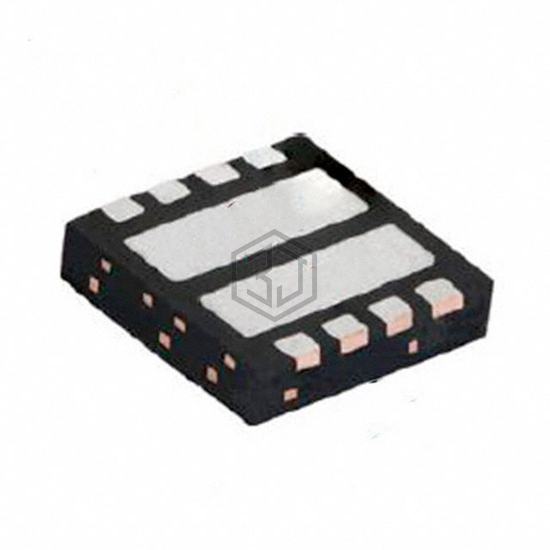

SIZ270DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. DUAL N-CHANNEL 100-V (D-S) MOSFE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 4.3W (Ta), 33W (Tc).
In Stock: 7,845
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 7.1A (Ta), 19.5A (Tc), 6.9A (Ta), 19.1A (Tc) |
| Rds On (Max) @ Id, Vgs | 37.7mOhm @ 7A, 10V, 39.4mOhm @ 7A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 27nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 860pF @ 50V, 845pF @ 50V |
| Power - Max | 4.3W (Ta), 33W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-PowerPair® (3.3x3.3) |
Submit your RFQ for SIZ270DT-T1-GE3 and get a quote within 24 hours.
