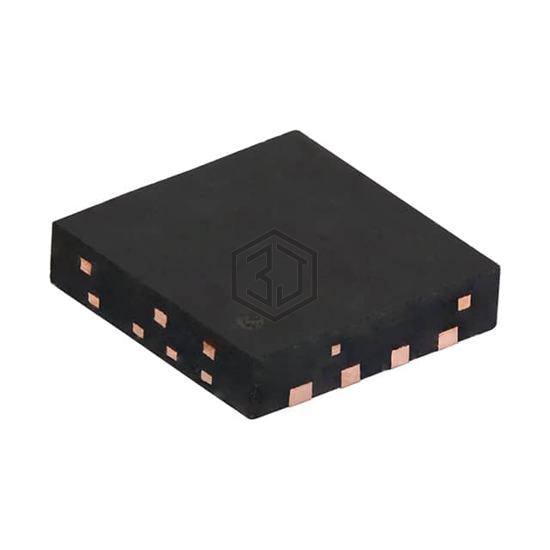

DUAL N-CHANNEL 70 V (D-S) MOSFET
SIZ256DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. DUAL N-CHANNEL 70 V (D-S) MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 4.3W (Ta), 33W (Tc).
In Stock: 4,332
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 70V |
| Current - Continuous Drain (Id) @ 25°C | 11.5A (Ta), 31.8A (Tc) |
| Rds On (Max) @ Id, Vgs | 17.6mOhm @ 7A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 27nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1060pF @ 35V |
| Power - Max | 4.3W (Ta), 33W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-PowerPair® (3.3x3.3) |
Submit your RFQ for SIZ256DT-T1-GE3 and get a quote within 24 hours.
