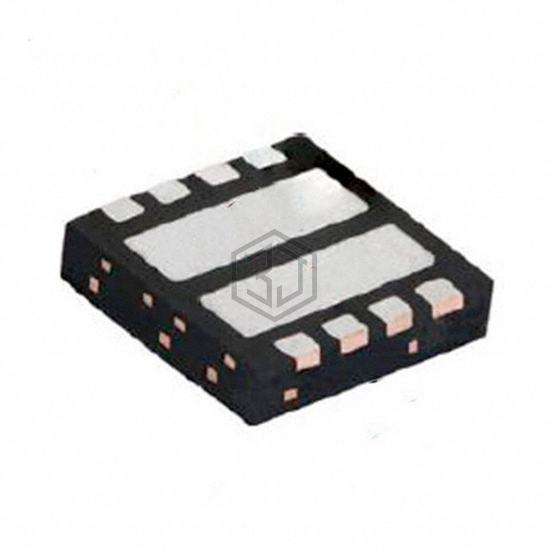

MOSFET DUAL N-CH 40V POWERPAIR 3
SIZ240DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET DUAL N-CH 40V POWERPAIR 3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 4.3W (Ta), 33W (Tc).
In Stock: 5,734
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 17.2A (Ta), 48A (Tc), 16.9A (Ta), 47A (Tc) |
| Rds On (Max) @ Id, Vgs | 8.05mOhm @ 10A, 10V, 8.41mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 23nC @ 10V, 22nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1180pF @ 20V, 1070pF @ 20V |
| Power - Max | 4.3W (Ta), 33W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-PowerPair® (3.3x3.3) |
Submit your RFQ for SIZ240DT-T1-GE3 and get a quote within 24 hours.
