MOSFET N-CH DUAL 30V

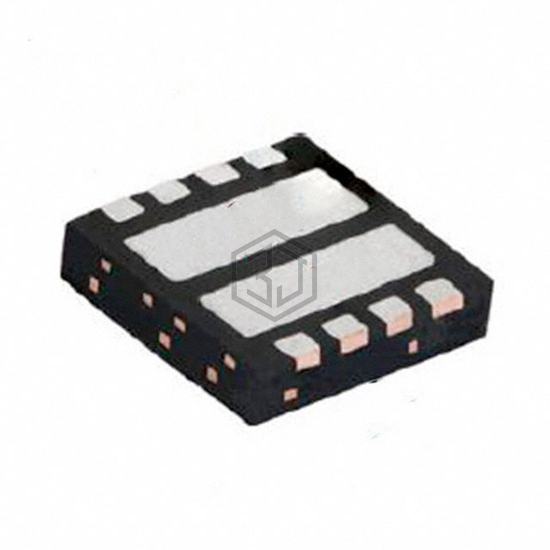

SIZ200DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET N-CH DUAL 30V. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 4.3W (Ta), 33W (Tc).
In Stock: 5,311
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 22A (Ta), 61A (Tc), 22A (Ta), 60A (Tc) |
| Rds On (Max) @ Id, Vgs | 5.5mOhm @ 10A, 10V, 5.8mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 28nC @ 10V, 30nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1510pF @ 15V, 1600pF @ 15V |
| Power - Max | 4.3W (Ta), 33W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-PowerPair® (3.3x3.3) |
Submit your RFQ for SIZ200DT-T1-GE3 and get a quote within 24 hours.
