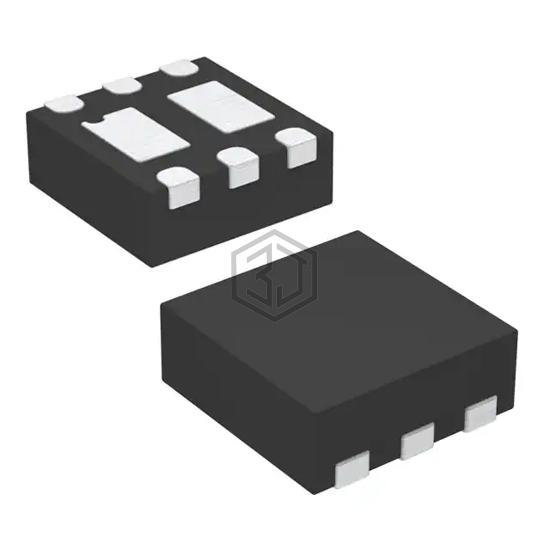

MOSFET N/P-CH 12V 4.5A SC70-6
SIA533EDJ-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET N/P-CH 12V 4.5A SC70-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SC-70-6 Dual, power - max 7.8W.
In Stock: 2,402
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N and P-Channel |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 12V |
| Current - Continuous Drain (Id) @ 25°C | 4.5A |
| Rds On (Max) @ Id, Vgs | 34mOhm @ 4.6A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 15nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 420pF @ 6V |
| Power - Max | 7.8W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | PowerPAK® SC-70-6 Dual |
| Supplier Device Package | PowerPAK® SC-70-6 Dual |
Submit your RFQ for SIA533EDJ-T1-GE3 and get a quote within 24 hours.
