N- AND P-CHANNEL 20-V (D-S) MOSF

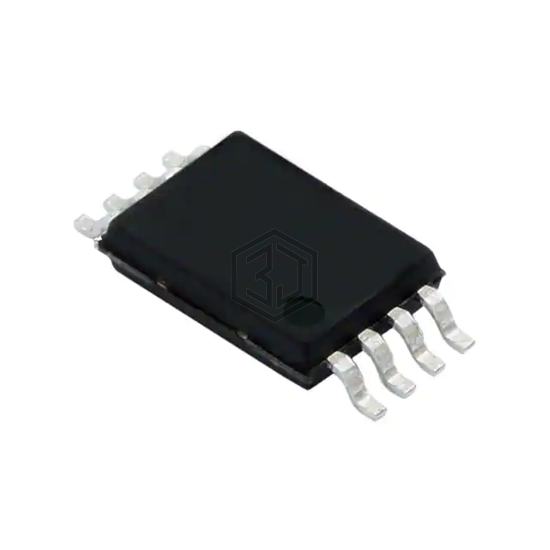

SI6562CDQ-T1-BE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. N- AND P-CHANNEL 20-V (D-S) MOSF. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-TSSOP (0.173", 4.40mm Width), power - max 1.1W (Ta), 1.6W (Tc), 1.2W (Ta), 1.7W (Tc).
In Stock: 1,731
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N and P-Channel |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 5.7A (Ta), 6.7A (Tc), 5.1A (Ta), 6.1A (Tc) |
| Rds On (Max) @ Id, Vgs | 22mOhm @ 5.7A, 4.5V, 30mOhm @ 5.1A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 23nC @ 10V, 51nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 850pF @ 10V, 1200pF @ 10V |
| Power - Max | 1.1W (Ta), 1.6W (Tc), 1.2W (Ta), 1.7W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 8-TSSOP |
Submit your RFQ for SI6562CDQ-T1-BE3 and get a quote within 24 hours.
