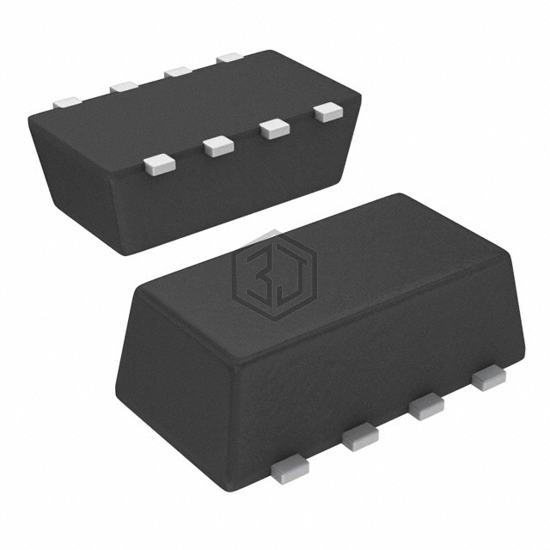

MOSFET N/P-CH 20V 4A 1206-8
SI5515CDC-T1-E3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET N/P-CH 20V 4A 1206-8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SMD, Flat Lead, power - max 3.1W.
In Stock: 2,218
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N and P-Channel |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Tc) |
| Rds On (Max) @ Id, Vgs | 36mOhm @ 6A, 4.5V |
| Vgs(th) (Max) @ Id | 800mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 11.3nC @ 5V |
| Input Capacitance (Ciss) (Max) @ Vds | 632pF @ 10V |
| Power - Max | 3.1W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Flat Lead |
| Supplier Device Package | 1206-8 ChipFET™ |
Submit your RFQ for SI5515CDC-T1-E3 and get a quote within 24 hours.
