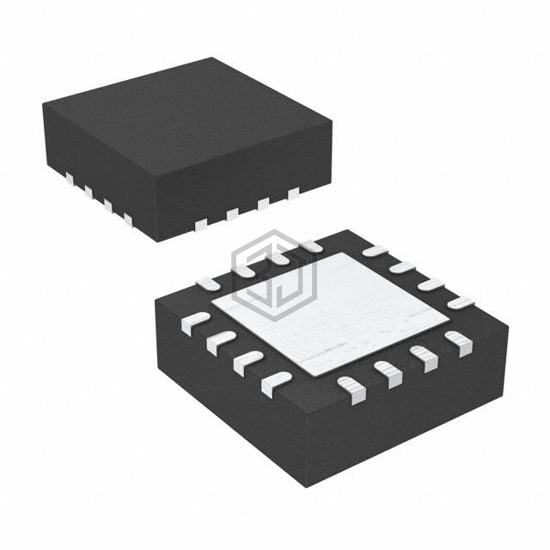

IC MUX ANA DUAL 8/4CH 16QFN
DG9408DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC MUX ANA DUAL 8/4CH 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VQFN Exposed Pad, number of circuits 1.
In Stock: 5,814
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 7Ohm |
| Channel-to-Channel Matching (ΔRon) | 3.6Ohm (Max) |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | ±3V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 70ns, 44ns |
| -3db Bandwidth | - |
| Charge Injection | 29pC |
| Channel Capacitance (CS(off), CD(off)) | 21pF, 211pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -85dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
DG9408DN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG9408EDN-T1-GE4 | Vishay Siliconix | IC ANLG SWITCH PREC 8CH 16QFN | 100% | View |
| DG3409DB-T2-E1 | Vishay Siliconix | IC MUX LV 8CH DUAL 4CH 16MICRO | 90% | View |
| ISL43113IBZ-T | Renesas Electronics America Inc | IC SWITCH SPST 8SOIC | 82% | View |
| ISL43112IBZ | Renesas Electronics America Inc | IC SWITCH SPST 8SOIC | 82% | View |
| ADG436BRZ-REEL | Analog Devices Inc. | IC SWITCH DUAL SPDT 16SOIC | 64% | View |
| TS3A5223RSWR | Texas Instruments | IC SWITCH 2 X SPDT 10UQFN | 63% | View |
Submit your RFQ for DG9408DN-T1-E4 and get a quote within 24 hours.
