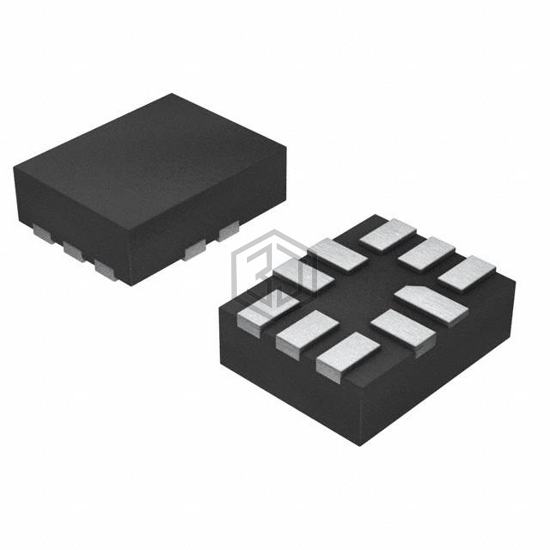

IC SWITCH 2 X SPDT 10UQFN
TS3A5223RSWR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH 2 X SPDT 10UQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.
In Stock: 6,997
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 600mOhm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 70ns, 75ns |
| -3db Bandwidth | 80MHz |
| Charge Injection | 40pC |
| Channel Capacitance (CS(off), CD(off)) | 50pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | -75dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-UQFN (1.8x1.4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG9409EDN-T1-GE4 | Vishay Siliconix | IC ANLG SWITCH PREC 8CH 16QFN | 73% | View |
| AOZ6275QI#A | Alpha & Omega Semiconductor Inc. | IC USB 2.0 SWITCH 16QFN | 73% | View |
| AOZ6275QI | Alpha & Omega Semiconductor Inc. | IC USB 2.0 SWITCH 16QFN | 73% | View |
| DG3409DB-T2-E1 | Vishay Siliconix | IC MUX LV 8CH DUAL 4CH 16MICRO | 73% | View |
| DG9408EDN-T1-GE4 | Vishay Siliconix | IC ANLG SWITCH PREC 8CH 16QFN | 63% | View |
| ADG436BRZ-REEL | Analog Devices Inc. | IC SWITCH DUAL SPDT 16SOIC | 56% | View |
Submit your RFQ for TS3A5223RSWR and get a quote within 24 hours.
