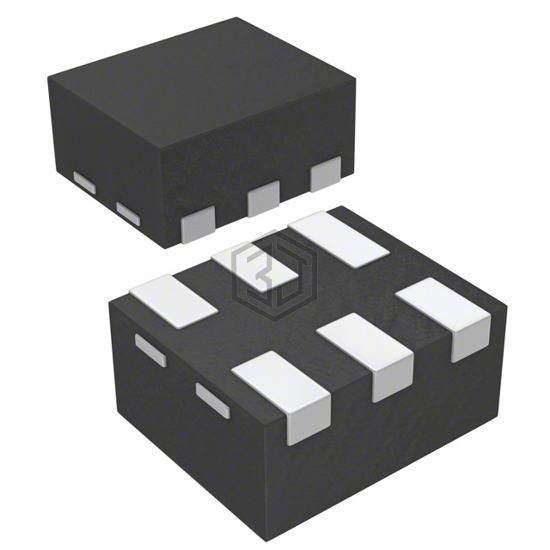

IC SWITCH SGL SPDT LV 6-MINIQFN
DG4157DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH SGL SPDT LV 6-MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-UFDFN, number of circuits 1.
In Stock: 3,942
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.2Ohm |
| Channel-to-Channel Matching (ΔRon) | 120mOhm (Max) |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 37ns, 23ns |
| -3db Bandwidth | 117MHz |
| Charge Injection | 50pC |
| Channel Capacitance (CS(off), CD(off)) | 20pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -63dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN |
| Supplier Device Package | 6-miniQFN (1x1.2) |
DG4157DN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG1633BRUZ | Analog Devices Inc. | IC SWITCH TRPL SPDT 16TSSOP | 69% | View |
| ADG1633BCPZ-REEL7 | Analog Devices Inc. | IC SWITCH TRPL SPDT 16LFCSP | 69% | View |
| ADG1633BRUZ-REEL7 | Analog Devices Inc. | IC SWITCH TRPL SPDT 16TSSOP | 69% | View |
| ADG1634BCPZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPDT 20LFCSP | 67% | View |
| ADG1634BRUZ | Analog Devices Inc. | IC SW SPDT 4.5OHM RON 20TSSOP | 67% | View |
| STG4160BJR | STMicroelectronics | IC SWITCH SGL SPDT 2:1 8FLIPCHIP | 57% | View |
Submit your RFQ for DG4157DN-T1-E4 and get a quote within 24 hours.
