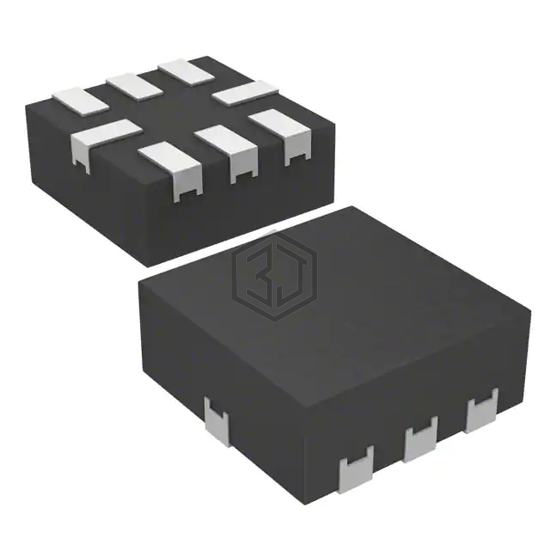

IC SWITCH 2XSPST 8 OHM 8MINIQFN
DG2737DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH 2XSPST 8 OHM 8MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-UFQFN, number of circuits 1.
In Stock: 56
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 8Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 2.3V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 60ns, 50ns |
| -3db Bandwidth | 720MHz |
| Charge Injection | 10.4pC |
| Channel Capacitance (CS(off), CD(off)) | 4.4pF, 3.8pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -109dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-UFQFN |
| Supplier Device Package | 8-miniQFN (1.4x1.4) |
DG2737DN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4564EKA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT SOT23-8 | 68% | View |
| DG442LEDY-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-SOIC | 58% | View |
| DG441LEDQ-T1-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-TSSOP | 58% | View |
| DG441LEDY-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-SOIC | 58% | View |
| DG442LEDQ-T1-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-TSSOP | 58% | View |
| DG442LEDY-T1-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-SOIC | 58% | View |
Submit your RFQ for DG2737DN-T1-E4 and get a quote within 24 hours.
