Analog Devices Inc./Maxim Integrated

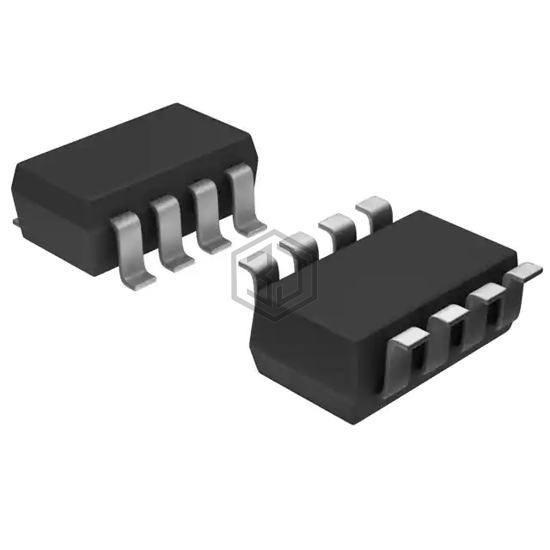

IC SWITCH SPDT SOT23-8
MAX4564EKA+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH SPDT SOT23-8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-23-8, number of circuits 1.
In Stock: 8,141
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 60Ohm |
| Channel-to-Channel Matching (ΔRon) | 750mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 12V |
| Voltage - Supply, Dual (V±) | ±1V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 60ns, 40ns |
| -3db Bandwidth | 450MHz |
| Charge Injection | 3pC |
| Channel Capacitance (CS(off), CD(off)) | 6pF, 8pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -72dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-8 |
| Supplier Device Package | SOT-23-8 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LMS4684LDX/NOPB | Texas Instruments | IC SWITCH DUAL SPDT 10WSON | 89% | View |
| LMS4684LDX | Texas Instruments | IC SWITCH DUAL SPDT 10WSON | 89% | View |
| DG441LEDQ-T1-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-TSSOP | 74% | View |
| DG441LEDY-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-SOIC | 74% | View |
| DG201HSDY-T1-E3 | Vishay Siliconix | IC SWITCH QUAD SPST 16SOIC | 61% | View |
| CD74HCT4067M | Texas Instruments | IC MUX/DEMUX 1X16 24SOIC | 51% | View |
Submit your RFQ for MAX4564EKA+T and get a quote within 24 hours.
