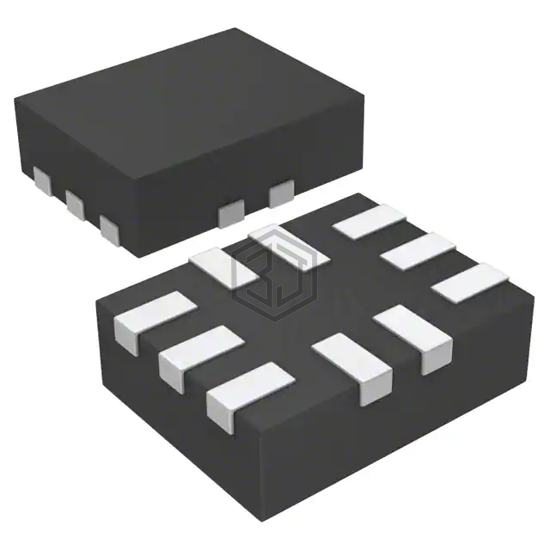

IC SWITCH DPDT USB2.0 10-MINIQFN
DG2722DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DPDT USB2.0 10-MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.
In Stock: 5,815
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 8Ohm |
| Channel-to-Channel Matching (ΔRon) | 800mOhm |
| Voltage - Supply, Single (V+) | 2.6V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 30ns, 25ns |
| -3db Bandwidth | 900MHz |
| Charge Injection | 0.5pC |
| Channel Capacitance (CS(off), CD(off)) | 2.2pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -45dB @ 240MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-miniQFN (1.4x1.8) |
DG2722DN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG2730DN-T1-GE4 | Vishay Siliconix | IC SWITCH DPDT 8 OHM 10MINIQFN | 94% | View |
| DG2723DN-T1-E4 | Vishay Siliconix | IC SWITCH DUAL SPDT 10MINIQFN | 91% | View |
| TMUX154ERSWR | Texas Instruments | IC SWITCH SPDT DUAL 10UQFN | 85% | View |
| ISL43640IUZ-T | Renesas Electronics America Inc | IC MUX/DEMUX 4X1 10MSOP | 63% | View |
| ISL43640IR | Renesas Electronics America Inc | IC MUX/DEMUX 4X1 16QFN | 63% | View |
| DG2002EDL-T1-GE3 | Vishay Siliconix | IC ANALOG SWITCH SPDT SC-70-6 | 52% | View |
Submit your RFQ for DG2722DN-T1-E4 and get a quote within 24 hours.
