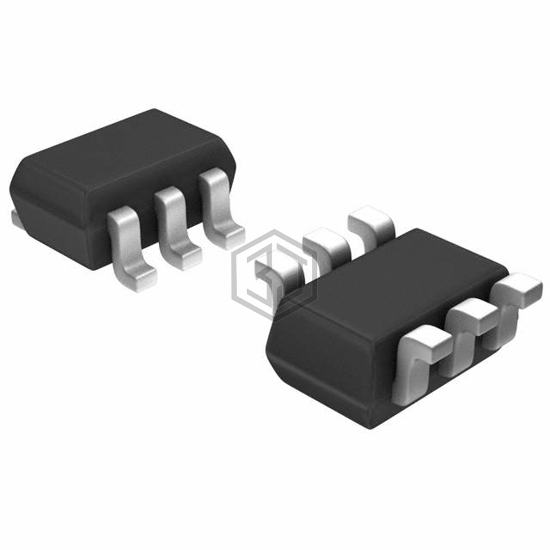

IC ANALOG SWITCH SPDT SC-70-6
DG2002EDL-T1-GE3 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC ANALOG SWITCH SPDT SC-70-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 6-TSSOP, SC-88, SOT-363, number of circuits 1.
In Stock: 2,367
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 8Ohm |
| Channel-to-Channel Matching (ΔRon) | 40mOhm (Typ) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 30ns, 24ns |
| -3db Bandwidth | - |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 7pF, 7pF |
| Current - Leakage (IS(off)) (Max) | 1.5nA |
| Crosstalk | -77dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG804YRMZ-REEL | Analog Devices Inc. | IC MULTIPLEXER 4X1 10MSOP | 80% | View |
| ADG804YRMZ | Analog Devices Inc. | IC MULTIPLEXER 4X1 10MSOP | 80% | View |
| ADG804YRMZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER 4X1 10MSOP | 80% | View |
| MAX4695EGC+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 12QFN | 71% | View |
| RS2101XC6 | Runic Technology | IC SWITCH SPDT SC70-6 | 70% | View |
| DG722DQ-T1-GE3 | Vishay Siliconix | IC SWITCH 2 X SPST 4.5 OHM 8MSOP | 70% | View |
Submit your RFQ for DG2002EDL-T1-GE3 and get a quote within 24 hours.
