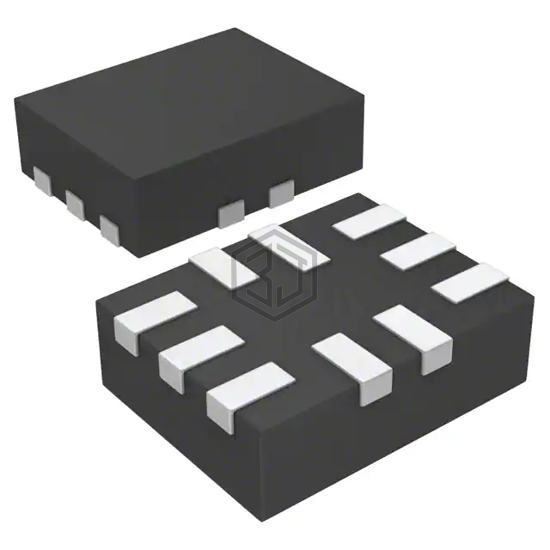

IC SWITCH DUAL SPDT 10MINIQFN
DG2721DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DUAL SPDT 10MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 1.
In Stock: 1,787
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | DTDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 7Ohm |
| Channel-to-Channel Matching (ΔRon) | 350mOhm |
| Voltage - Supply, Single (V+) | 3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 30ns, 25ns |
| -3db Bandwidth | 620MHz |
| Charge Injection | 0.5pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -49dB @ 240MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-miniQFN (1.4x1.8) |
DG2721DN-T1-E4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG2730DN-T1-GE4 | Vishay Siliconix | IC SWITCH DPDT 8 OHM 10MINIQFN | 83% | View |
| DG4599EDL-T1-GE3 | Vishay Siliconix | IC ANALOG SWITCH SC70-6 | 83% | View |
| RS2057XC6 | Runic Technology | IC SWITCH SPDT SC70-6 | 59% | View |
| DG2537DQ-T1-GE3 | Vishay Siliconix | IC SWITCH SPST 4.5 OHM 10MSOP | 58% | View |
| ADG798HFZ | Analog Devices Inc. | IC MUX/DEMUX 8:1 16FLATPACK | 52% | View |
| MAX4695EGC+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 12QFN | 50% | View |
Submit your RFQ for DG2721DN-T1-E4 and get a quote within 24 hours.
