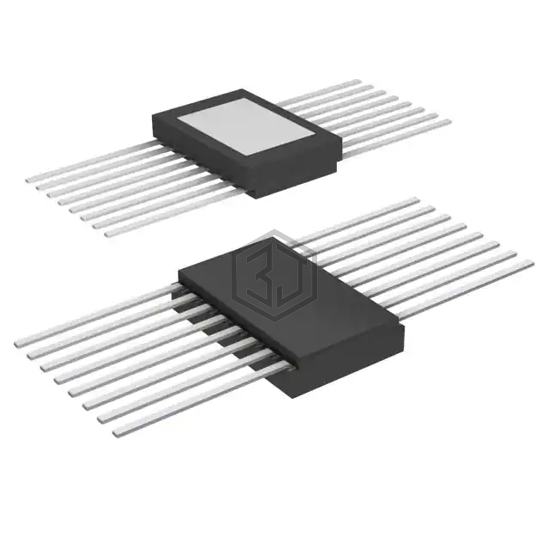

IC MUX/DEMUX 8:1 16FLATPACK
ADG798HFZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MUX/DEMUX 8:1 16FLATPACK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 210°C (TA), package / case 16-CFlatPack, number of circuits 1.
In Stock: 76
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.25Ohm |
| Voltage - Supply, Single (V+) | 3V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±2.5V |
| Switch Time (Ton, Toff) (Max) | 30ns, 20ns |
| -3db Bandwidth | 55MHz |
| Charge Injection | 3pC |
| Channel Capacitance (CS(off), CD(off)) | 13pF, 85pF |
| Current - Leakage (IS(off)) (Max) | 180nA |
| Crosstalk | -60dB @ 10MHz |
| Operating Temperature | -55°C ~ 210°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-CFlatPack |
| Supplier Device Package | 16-CFlatPack |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG798HFRZ | Analog Devices Inc. | IC MUX/DEMUX 8:1 16FLATPACK | 100% | View |
Submit your RFQ for ADG798HFZ and get a quote within 24 hours.
