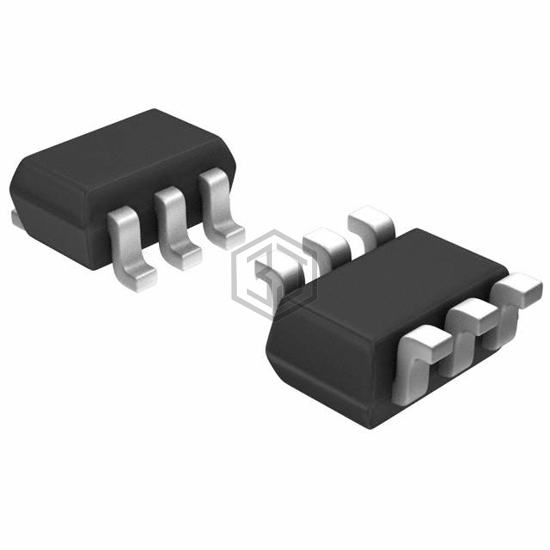

IC SWITCH SGL SPDT LV SC70-6
DG2714DL-T1-E3 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH SGL SPDT LV SC70-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-TSSOP, SC-88, SOT-363, number of circuits 1.
In Stock: 9,624
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.2Ohm |
| Channel-to-Channel Matching (ΔRon) | 60mOhm (Max) |
| Voltage - Supply, Single (V+) | 1.5V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 51ns, 33ns |
| -3db Bandwidth | - |
| Charge Injection | 9pC |
| Channel Capacitance (CS(off), CD(off)) | 30pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -64dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 |
DG2714DL-T1-E3 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG9424EDN-T1-GE4 | Vishay Siliconix | ANALOG SWITCH QUAD SPST 16-QFN | 68% | View |
| DG9424EDQ-T1-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-TSSOP | 68% | View |
| DG9426EDQ-T1-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-TSSOP | 68% | View |
| DG9425EDQ-T1-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-TSSOP | 68% | View |
| CD74HC4067M | Texas Instruments | IC MUX/DEMUX 1X16 24SOIC | 56% | View |
| 74HC4051D,653 | Nexperia USA Inc. | IC MUX/DEMUX 8X1 16SOIC | 56% | View |
