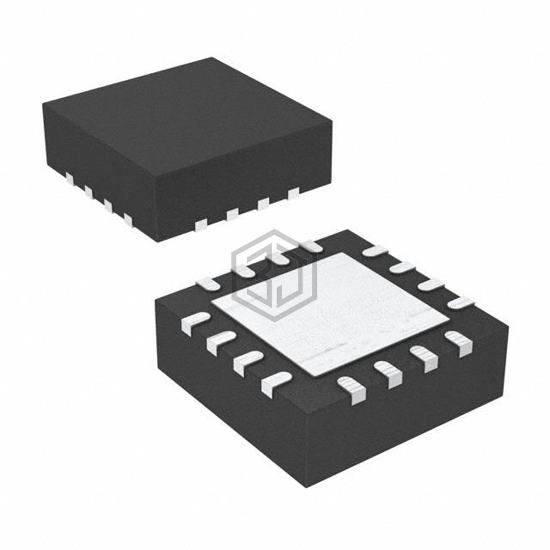

ANALOG SWITCH QUAD SPST 16-QFN
DG9424EDN-T1-GE4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. ANALOG SWITCH QUAD SPST 16-QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 16-VQFN Exposed Pad, number of circuits 4.
In Stock: 9,430
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 3Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 3V ~ 16V |
| Voltage - Supply, Dual (V±) | ±3V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 51ns, 35ns |
| -3db Bandwidth | - |
| Charge Injection | 38pC |
| Channel Capacitance (CS(off), CD(off)) | 49pF, 37pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -77dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG9424EDQ-T1-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-TSSOP | 100% | View |
| DG9426EDQ-T1-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-TSSOP | 100% | View |
| DG9425EDQ-T1-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-TSSOP | 100% | View |
| DG9426DQ-T1-E3 | Vishay Siliconix | IC SWITCH QUAD SPST 16TSSOP | 100% | View |
| DG604EEN-T1-GE4 | Vishay Siliconix | IC MULTIPLEXER 16MINIQFN | 71% | View |
| DG604EEQ-T1-GE4 | Vishay Siliconix | IC MULTIPLEXER 14TSSOP | 71% | View |
Submit your RFQ for DG9424EDN-T1-GE4 and get a quote within 24 hours.
