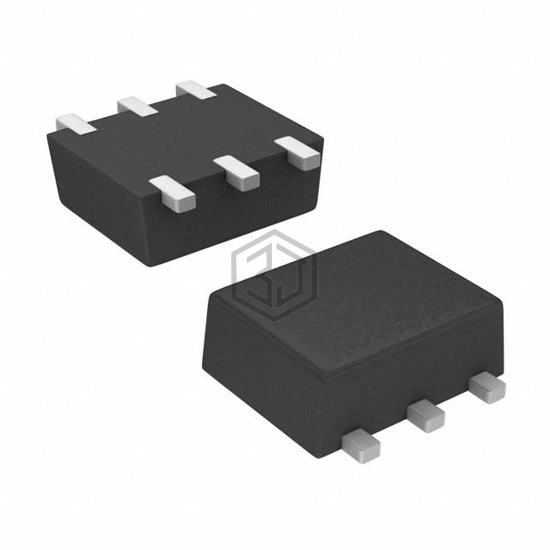

IC SWITCH LV SPST SC89-6
DG2612DX-T1-E3 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH LV SPST SC89-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-563, SOT-666, number of circuits 1.
In Stock: 6,893
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.4Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm (Max) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 60ns, 35ns |
| -3db Bandwidth | - |
| Charge Injection | 2.4pC |
| Channel Capacitance (CS(off), CD(off)) | 36pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -73dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SC-89-6 (SOT-666) |
DG2612DX-T1-E3 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LMS4684LDX | Texas Instruments | IC SWITCH DUAL SPDT 10WSON | 78% | View |
| MAX4564EKA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT SOT23-8 | 71% | View |
| MAX4854HETE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 16TQFN | 68% | View |
| CD74HCT4067QM96Q1 | Texas Instruments | IC MUX/DMUX 16CH 24SOIC | 61% | View |
| D24067IM96G4Q1 | Texas Instruments | IC MUX/DEMUX 1:16 24SOIC | 61% | View |
| CD74HCT4067M | Texas Instruments | IC MUX/DEMUX 1X16 24SOIC | 61% | View |
