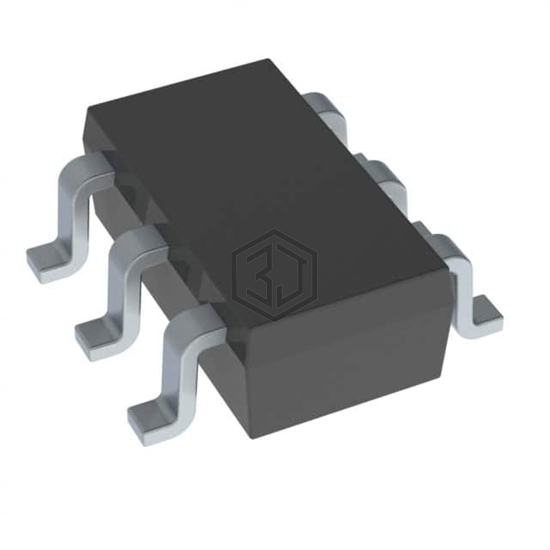

IC SWITCH DUAL SPDT 6TSOP
DG2520DV-T1-E3 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DUAL SPDT 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-23-6 Thin, TSOT-23-6, number of circuits 1.
In Stock: 4,599
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 800mOhm |
| Channel-to-Channel Matching (ΔRon) | 60mOhm (Max) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 35ns, 15ns |
| -3db Bandwidth | 40MHz |
| Charge Injection | 224pC |
| Channel Capacitance (CS(off), CD(off)) | 50pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -57dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | 6-TSOP |
DG2520DV-T1-E3 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL54059IRTZ | Renesas Electronics America Inc | IC SWITCH DUAL SPDT 10TDFN | 68% | View |
| ISL54060IRTZ-T | Renesas Electronics America Inc | IC SWITCH DUAL SPST 10TDFN | 68% | View |
| DG9051DQ-T1-E3 | Vishay Siliconix | IC MULTIPLEXER 8X1 16TSSOP | 66% | View |
| TS5A3159DCKTG4 | Texas Instruments | IC SWITCH SPDT SC70-6 | 65% | View |
| TS3A24159DRCRG4 | Texas Instruments | IC SWITCH DUAL SPDT 10SON | 59% | View |
| MAX4542EKA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST SOT23-8 | 55% | View |
Submit your RFQ for DG2520DV-T1-E3 and get a quote within 24 hours.
