Renesas Electronics America Inc

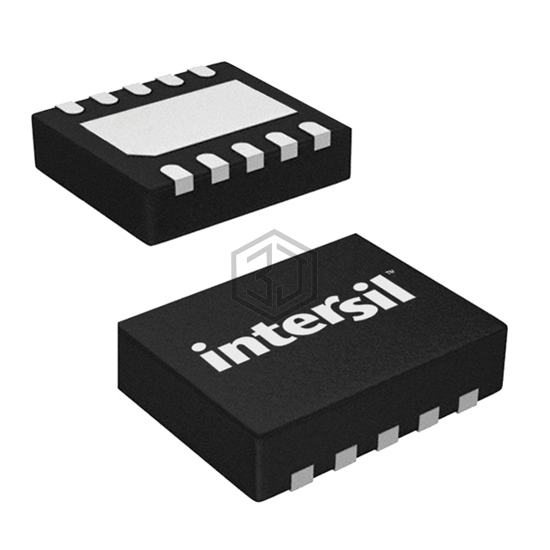

IC SWITCH DUAL SPDT 10TDFN
ISL54059IRTZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH DUAL SPDT 10TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-VFDFN Exposed Pad, number of circuits 2.
In Stock: 8,526
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 520mOhm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 10mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 6.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 35ns, 16ns |
| -3db Bandwidth | 60MHz |
| Charge Injection | 170pC |
| Channel Capacitance (CS(off), CD(off)) | 36pF |
| Current - Leakage (IS(off)) (Max) | 8.13nA |
| Crosstalk | -75dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-TDFN (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TS3A24157RSERG4 | Texas Instruments | IC SWITCH DUAL SPDT 10UQFN | 78% | View |
| MAX4542EKA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST SOT23-8 | 65% | View |
| TS5A3159DBVRG4 | Texas Instruments | IC SWITCH SPDT SOT23-6 | 63% | View |
| TS5A3159DCKTG4 | Texas Instruments | IC SWITCH SPDT SC70-6 | 63% | View |
| TS3A24159DGSR | Texas Instruments | IC SWITCH SPDT DUAL 10VSSOP | 61% | View |
| TS3A24159DRCRG4 | Texas Instruments | IC SWITCH DUAL SPDT 10SON | 61% | View |
Submit your RFQ for ISL54059IRTZ and get a quote within 24 hours.
