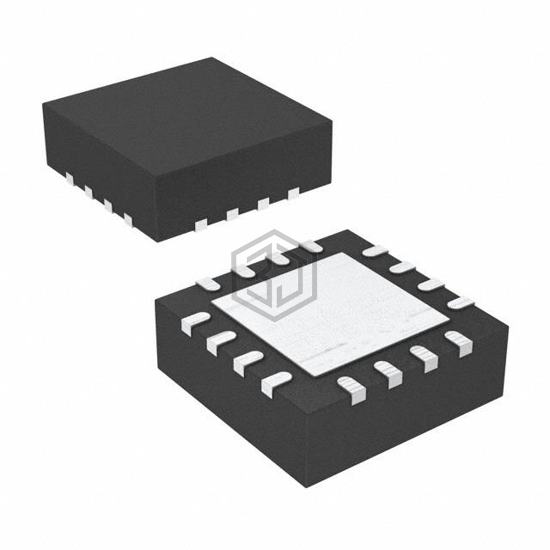

IC SWITCH DUAL 16QFN
DG1409EEN-T1-GE4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DUAL 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-VQFN Exposed Pad, number of circuits 2.
In Stock: 3,801
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 4:2 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 4.2Ohm |
| Channel-to-Channel Matching (ΔRon) | 270mOhm |
| Voltage - Supply, Single (V+) | 4.5V ~ 24V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 130ns, 105ns |
| -3db Bandwidth | 90MHz |
| Charge Injection | 103pC |
| Channel Capacitance (CS(off), CD(off)) | 13pF, 43pF |
| Current - Leakage (IS(off)) (Max) | 550pA |
| Crosstalk | -64dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADGS1412BCPZ-RL7 | Analog Devices Inc. | IC SWITCH SPST QUAD 24-LFCSP | 69% | View |
| ADGS1412BCPZ | Analog Devices Inc. | IC SWITCH SPST QUAD 24-LFCSP | 69% | View |
| MUX509ID | Texas Instruments | IC MUX DUAL 4:1 170 OHM 16SOIC | 62% | View |
| ADG1607BRUZ | Analog Devices Inc. | IC MULTIPLEXER 2X8 28TSSOP | 58% | View |
| ADG1607BCPZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER 2X8 32LFCSP | 58% | View |
| ADG1607BRUZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER 2X8 28TSSOP | 58% | View |
Submit your RFQ for DG1409EEN-T1-GE4 and get a quote within 24 hours.
