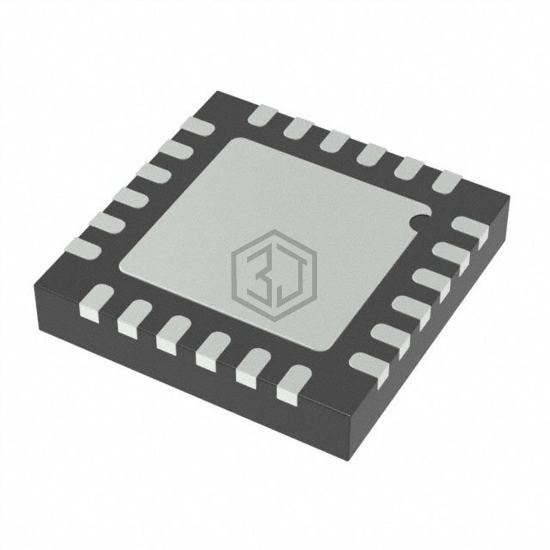

IC SWITCH SPST QUAD 24-LFCSP
ADGS1412BCPZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH SPST QUAD 24-LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 24-VFQFN Exposed Pad, CSP, number of circuits 4.
In Stock: 8,796
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 1.8Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 5V ~ 20V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 135ns, 190ns |
| -3db Bandwidth | 170MHz |
| Charge Injection | -20pC |
| Channel Capacitance (CS(off), CD(off)) | 22pF, 23pF |
| Current - Leakage (IS(off)) (Max) | 550pA |
| Crosstalk | -100dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADGS1412BCPZ-RL7 | Analog Devices Inc. | IC SWITCH SPST QUAD 24-LFCSP | 100% | View |
| DG1411EEQ-T1-GE4 | Vishay Siliconix | IC SWITCH SPST QUAD 16TSSOP | 94% | View |
| MUX36D04IPW | Texas Instruments | IC MUX 4:1 LOCAP CMOS 16TSSOP | 59% | View |
| MUX36D04IPWR | Texas Instruments | IC MUX 4:1 LOCAP CMOS 16TSSOP | 59% | View |
| MUX509ID | Texas Instruments | IC MUX DUAL 4:1 170 OHM 16SOIC | 55% | View |
| MUX509IPWR | Texas Instruments | IC MUX DUAL 4:1 170 OHM 16TSSOP | 55% | View |
Submit your RFQ for ADGS1412BCPZ and get a quote within 24 hours.
