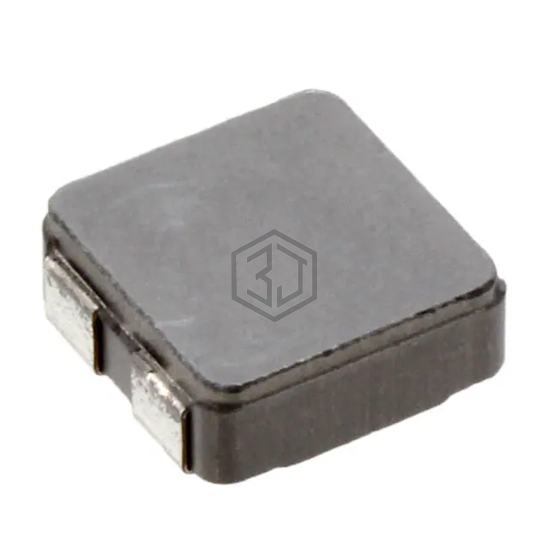

INDUCT ARRAY 2 COIL 10UH SMD
IHCL4040DZER100M5A is a Arrays, Signal Transformers manufactured by Vishay Dale. INDUCT ARRAY 2 COIL 10UH SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, size / dimension 0.420" L x 0.400" W (10.67mm x 10.16mm).
In Stock: 1,804
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | - |
| Inductance - Connected In Series | - |
| Tolerance | ±20% |
| Current Rating - Parallel | - |
| Current Rating - Series | - |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | - |
| DC Resistance (DCR) - Series | - |
| Shielding | Shielded |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.420" L x 0.400" W (10.67mm x 10.16mm) |
| Height | 0.157" (4.00mm) |
Submit your RFQ for IHCL4040DZER100M5A and get a quote within 24 hours.
