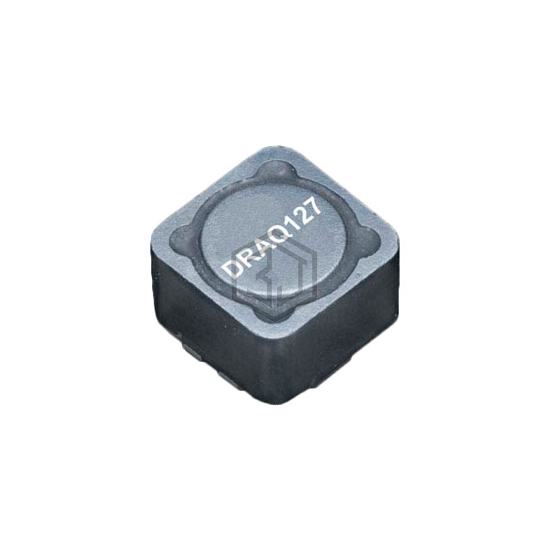

INDUCT ARRAY 2 COIL 32UH SMD
DRAQ127-330-R is a Arrays, Signal Transformers manufactured by Eaton - Electronics Division. INDUCT ARRAY 2 COIL 32UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 165°C, package / case Nonstandard, size / dimension 0.480" L x 0.480" W (12.20mm x 12.20mm).
In Stock: 350
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 32 µH |
| Inductance - Connected In Series | 128 µH |
| Tolerance | ±25% |
| Current Rating - Parallel | 3.22 A |
| Current Rating - Series | 1.61 A |
| Current Saturation - Parallel | 4.98 A |
| Current Saturation - Series | 2.49 A |
| DC Resistance (DCR) - Parallel | 72mOhm Max |
| DC Resistance (DCR) - Series | 288mOhm Max |
| Shielding | Shielded |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 165°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.480" L x 0.480" W (12.20mm x 12.20mm) |
| Height | 0.315" (8.00mm) |
