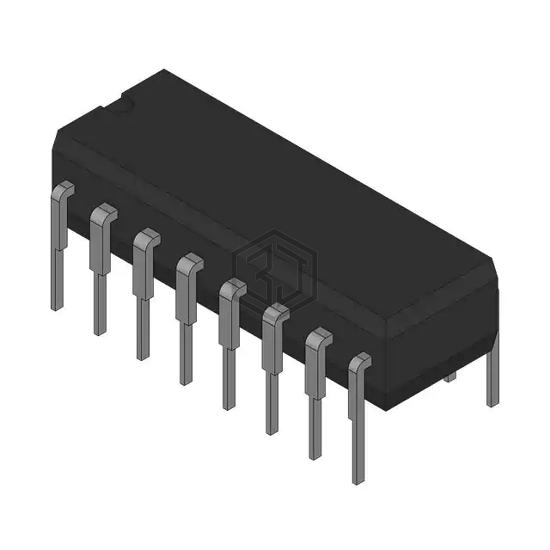

UC2823 HIGH SPEED PWM CONTROLLER
UC2823N is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Unitrode. UC2823 HIGH SPEED PWM CONTROLLER. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C (TA), voltage - supply (vcc/vdd) 8.4V ~ 30V, package / case 16-DIP (0.300", 7.62mm).
In Stock: 19,367
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Boost, Flyback, Forward Converter |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8.4V ~ 30V |
| Frequency - Switching | 340kHz ~ 460kHz |
| Duty Cycle (Max) | 80% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Ramp, Soft Start |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UC1823BJ883B | Texas Instruments | SWITCHING CONTROLLER | 75% | View |
| UC1825AJ883B | Texas Instruments | HIGH SPEED PWM CONTROLLER 16-CDI | 74% | View |
| 5962-8680603VEA | Texas Instruments | IC REG CTRLR MULT TOP 16CDIP | 68% | View |
| MAX797MJE | Analog Devices Inc./Maxim Integrated | STEP-DOWN CONTROLLERS WITH SYNCH | 60% | View |
