IC REG CTRLR MULT TOP 16CDIP

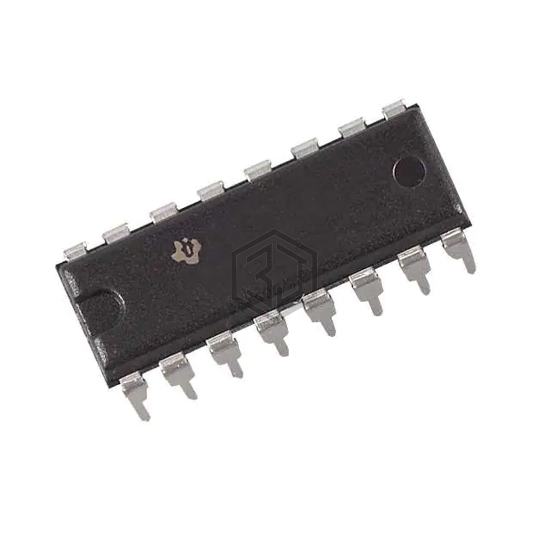

5962-8680603VEA is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR MULT TOP 16CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 6.95V ~ 40V, package / case 16-CDIP (0.300", 7.62mm).
In Stock: 8,291
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 6.95V ~ 40V |
| Frequency - Switching | 200kHz |
| Duty Cycle (Max) | 50% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Dead Time Control, Enable, Frequency Control, Soft Start |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX797MJE | Analog Devices Inc./Maxim Integrated | STEP-DOWN CONTROLLERS WITH SYNCH | 77% | View |
| UC1823BJ883B | Texas Instruments | SWITCHING CONTROLLER | 58% | View |
| UC1825AJ883B | Texas Instruments | HIGH SPEED PWM CONTROLLER 16-CDI | 57% | View |
Submit your RFQ for 5962-8680603VEA and get a quote within 24 hours.
