CAP ALUM 820UF 20% 100V SNAP

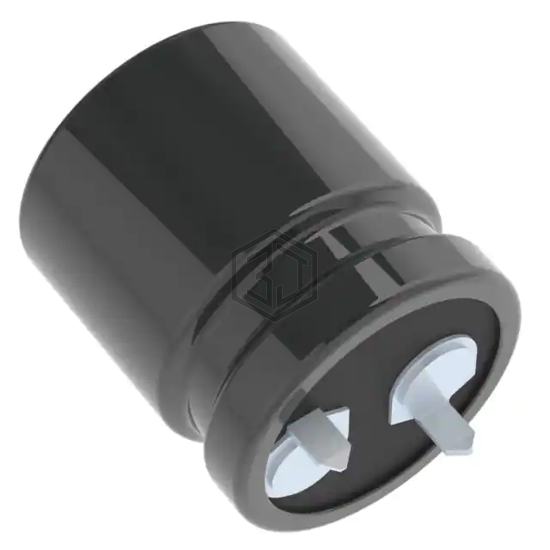

SMH100VN821M22X25T2 is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 820UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 9,912
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 303mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.86 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.232 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
SMH100VN821M22X25T2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGY2A821MELA25 | Nichicon | CAP ALUM 820UF 20% 100V SNAP | 82% | View |
| EEU-FC1J821 | Panasonic Electronic Components | CAP ALUM 820UF 20% 63V RADIAL | 80% | View |
| 381LX821M160K022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 820UF 20% 160V SNAP | 79% | View |
| LGU2Z821MELB | Nichicon | CAP ALUM 820UF 20% 180V SNAP | 72% | View |
| LGG2P821MELC25 | Nichicon | CAP ALUM 820UF 20% 220V SNAP | 72% | View |
| B43508F2827M87 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 250V SNAP | 71% | View |
Submit your RFQ for SMH100VN821M22X25T2 and get a quote within 24 hours.
