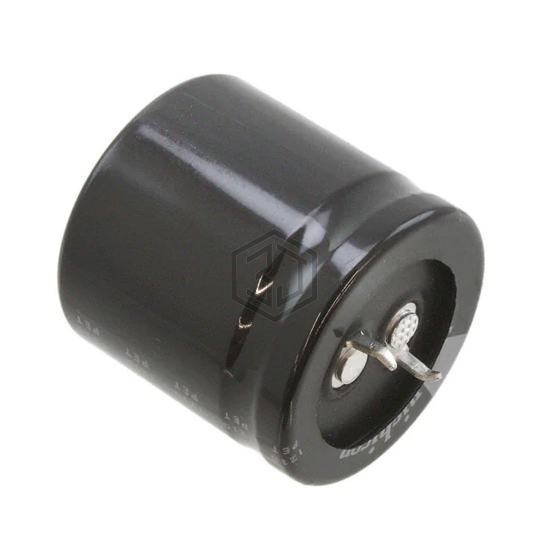

CAP ALUM 820UF 20% 180V SNAP
LGU2Z821MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 180V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 180 V, package / case Radial, Can - Snap-In.
In Stock: 4,622
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 180 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.04 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.06 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43509B2827M000 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 200V SNAP | 94% | View |
| 381LX821M160K022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 820UF 20% 160V SNAP | 94% | View |
| LGG2P821MELC25 | Nichicon | CAP ALUM 820UF 20% 220V SNAP | 91% | View |
| LGU2E821MELC | Nichicon | CAP ALUM 820UF 20% 250V SNAP | 84% | View |
| B43508F2827M87 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 250V SNAP | 83% | View |
| 63ZLJ820M12.5X30 | Rubycon | CAP ALUM 820UF 20% 63V RADIAL | 76% | View |
