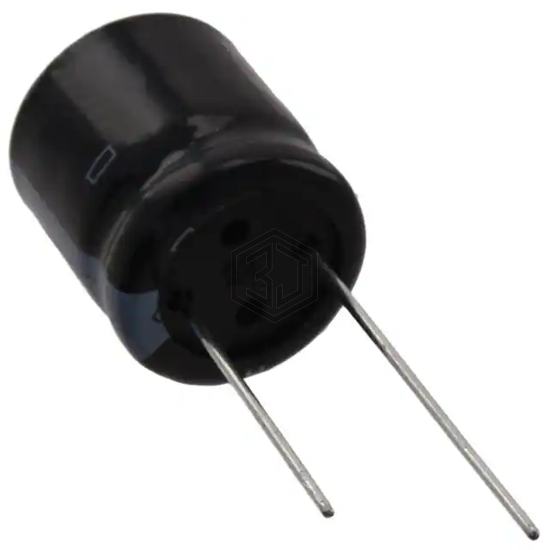

CAP ALUM 10000UF 20% 6.3V RADIAL
SMG6.3VB103M20ALL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 10000UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 5,036
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 55mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.31 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.4948 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG6.3VB103M20ALL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 109SAK010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10000UF 20% 10V RADIAL | 84% | View |
| EKMH250VSN103MR25S | United Chemi-Con | CAP ALUM 10000UF 20% 25V SNAP | 78% | View |
| 35VXG10000MEFCSN35X30 | Rubycon | CAP ALUM 10000UF 20% 35V SNAP | 69% | View |
| EKMH350VNN103MA30W | United Chemi-Con | CAP ALUM 10000UF 20% 35V SNAP | 68% | View |
| SEK103M016ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 16V RADIAL | 66% | View |
| 109LBB035M2CE | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10000UF 20% 35V SNAP | 62% | View |
