Cornell Dubilier / Illinois Capacitor

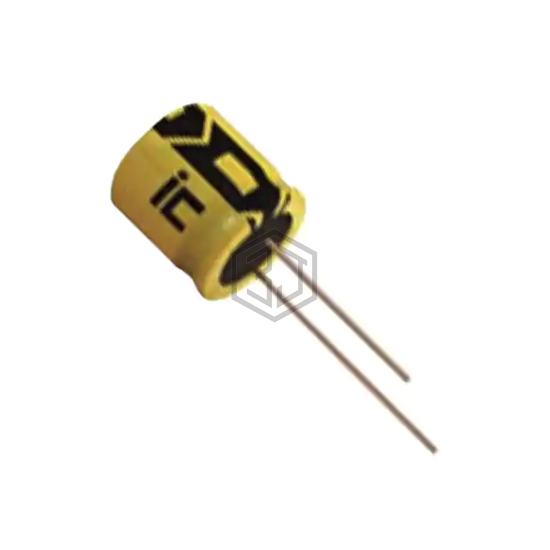

CAP ALUM 10000UF 20% 10V RADIAL
109SAK010M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 10000UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 3,950
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 70mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.23 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.5645 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UKW1A103MHD | Nichicon | CAP ALUM 10000UF 20% 10V RADIAL | 95% | View |
| EEU-HD1C103 | Panasonic Electronic Components | CAP ALUM 10000UF 20% 16V RADIAL | 82% | View |
| EKMH250VSN103MR25S | United Chemi-Con | CAP ALUM 10000UF 20% 25V SNAP | 77% | View |
| SEK103M016ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 16V RADIAL | 72% | View |
| EKMH350VNN103MA30W | United Chemi-Con | CAP ALUM 10000UF 20% 35V SNAP | 68% | View |
| 109LBB035M2CE | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10000UF 20% 35V SNAP | 62% | View |
