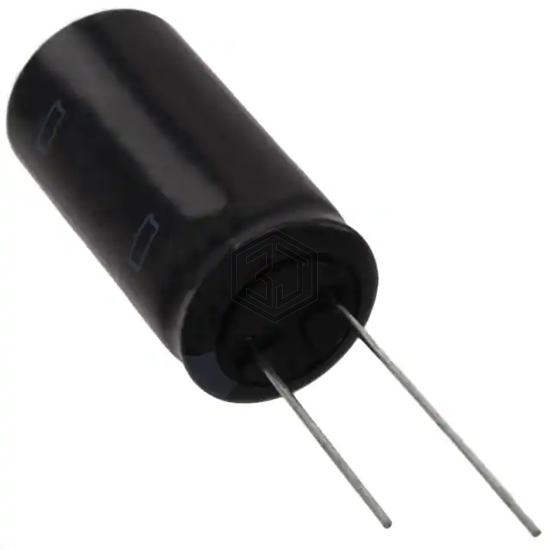

CAP ALUM 3300UF 20% 50V RADIAL
SMG50VB332M18X35LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3300UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 3,792
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 40mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.16 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG50VB332M18X35LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 338LMB063M2EC | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3300UF 20% 63V SNAP | 84% | View |
| MAL215050332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 35V RADIAL | 82% | View |
| UPA1E332MHD1TN | Nichicon | CAP ALUM 3300UF 20% 25V RADIAL | 72% | View |
| 16YXH3300MEFC12.5X35 | Rubycon | CAP ALUM 3300UF 20% 16V RADIAL | 67% | View |
| B41605A338M2 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 55V SNAP | 60% | View |
| MAL213634332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 10V RADIAL | 51% | View |
Submit your RFQ for SMG50VB332M18X35LL and get a quote within 24 hours.
