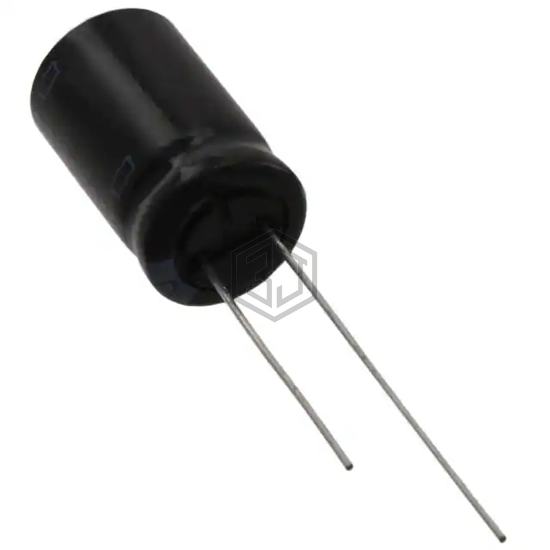

CAP ALUM 22UF 20% 400V RADIAL
SMG400VB22RM12X25LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 7,952
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 1.989Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 205 mA @ 120 Hz |
| Ripple Current @ High Frequency | 369 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG400VB22RM12X25LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URS2G220MHD6TN | Nichicon | CAP ALUM 22UF 20% 400V RADIAL | 88% | View |
| SMG450VB22RM16X25LL | United Chemi-Con | CAP ALUM 22UF 20% 450V RADIAL | 86% | View |
| 226CKS100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 100V RADIAL | 65% | View |
| 200WXA22MEFCG412.5X16 | Rubycon | CAP ALUM 22UF 20% 200V RADIAL | 61% | View |
| 16MS722MEFCT55X7 | Rubycon | CAP ALUM 22UF 20% 16V RADIAL | 56% | View |
| 16ZLG22MEFC5X7 | Rubycon | CAP ALUM 22UF 20% 16V RADIAL | 51% | View |
Submit your RFQ for SMG400VB22RM12X25LL and get a quote within 24 hours.
