Cornell Dubilier / Illinois Capacitor
CAP ALUM 22UF 20% 100V RADIAL

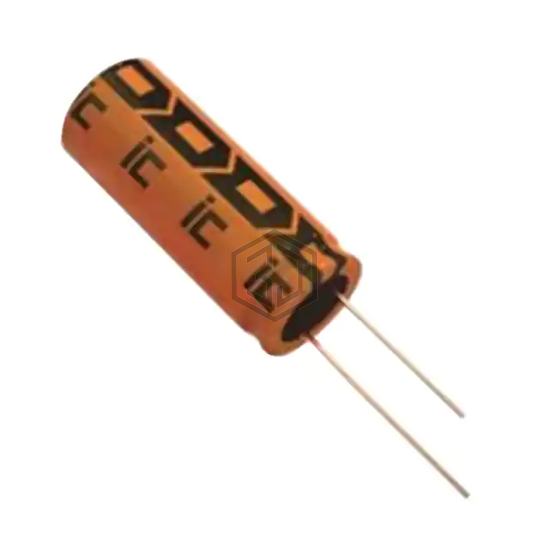

226CKS100M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 22UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 4,927
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 6.029Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 135 mA @ 120 Hz |
| Ripple Current @ High Frequency | 310.5 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SXR220M100ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 100V RADIAL | 99% | View |
| ECA-2AM220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 100V RADIAL | 85% | View |
| URZ2A220MPD1TA | Nichicon | CAP ALUM 22UF 20% 100V RADIAL | 79% | View |
| SMG450VB22RM16X25LL | United Chemi-Con | CAP ALUM 22UF 20% 450V RADIAL | 73% | View |
| 200PX22MEFC10X16 | Rubycon | CAP ALUM 22UF 20% 200V RADIAL | 57% | View |
| PF1H220MNN0511 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 52% | View |
Submit your RFQ for 226CKS100M and get a quote within 24 hours.
