CAP ALUM 560UF 20% 160V RADIAL

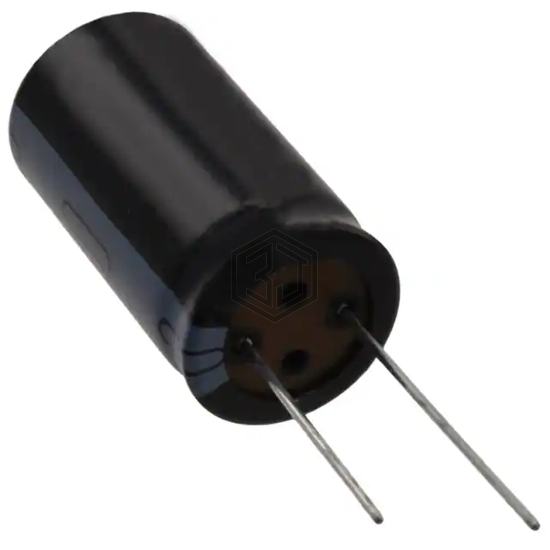

SMG160VB561M22DLL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 2,709
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | 1.51Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.47 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.205 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG160VB561M22DLL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SLPX561M180C1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 180V SNAP | 77% | View |
| LPX561M250H1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 250V SNAP | 77% | View |
| B43231C2567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 76% | View |
| B43504A2567M67 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 75% | View |
| B43305G2567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 74% | View |
| EKYB800ELL561MM20S | United Chemi-Con | CAP ALUM 560UF 20% 80V RADIAL | 70% | View |
Submit your RFQ for SMG160VB561M22DLL and get a quote within 24 hours.
