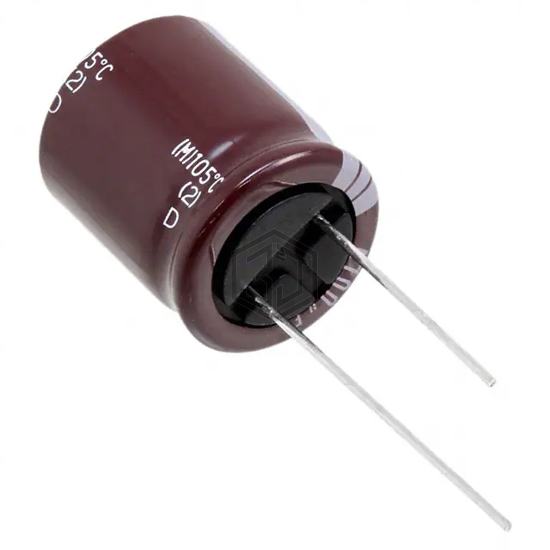

CAP ALUM 560UF 20% 80V RADIAL
EKYB800ELL561MM20S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 5,957
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.05 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.1 A @ 100 kHz |
| Impedance | 32 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX561M180J022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 180V SNAP | 70% | View |
| B41789K8567Q001 | EPCOS - TDK Electronics | CAP ALUM 560UF 63V RADIAL | 68% | View |
| 35RX30560M10X20 | Rubycon | CAP ALUM 560UF 20% 35V RADIAL | 56% | View |
| 200MXG560MEFCSN20X40 | Rubycon | CAP ALUM 560UF 20% 200V SNAP | 55% | View |
| B43504A2567M67 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 54% | View |
| EEU-FC1C561 | Panasonic Electronic Components | CAP ALUM 560UF 20% 16V RADIAL | 52% | View |
Submit your RFQ for EKYB800ELL561MM20S and get a quote within 24 hours.
