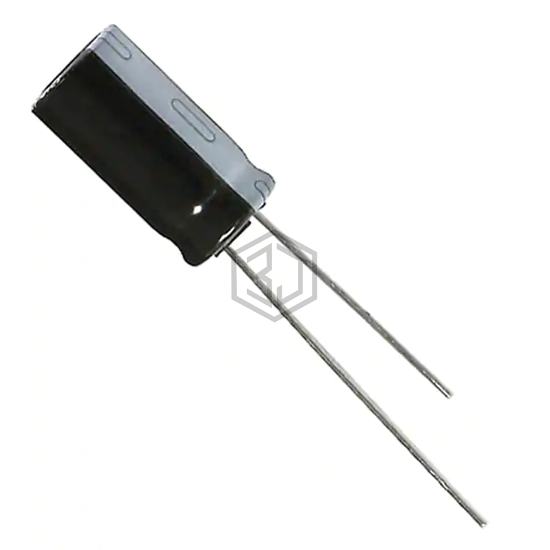

CAP ALUM 22UF 20% 160V RADIAL
SMG160VB22RM10X20LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 9,520
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | 92mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 170 mA @ 120 Hz |
| Ripple Current @ High Frequency | 306 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SMG160VB22RM10X20LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214262229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 200V RADIAL | 85% | View |
| 515D226M160CG6AE3 | Vishay Sprague | CAP ALUM 22UF 20% 160V RADIAL | 76% | View |
| 100PK22MEFCTA6.3X11 | Rubycon | CAP ALUM 22UF 20% 100V RADIAL | 70% | View |
| UCY2E220MPD1TD | Nichicon | CAP ALUM 22UF 20% 250V RADIAL | 70% | View |
| 450QXW22MEFR8X45 | Rubycon | CAP ALUM 22UF 20% 450V RADIAL | 69% | View |
| ECE-A1AKS220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 10V RADIAL | 56% | View |
Submit your RFQ for SMG160VB22RM10X20LL and get a quote within 24 hours.
