CAP ALUM 2200UF 20% 35V SMD

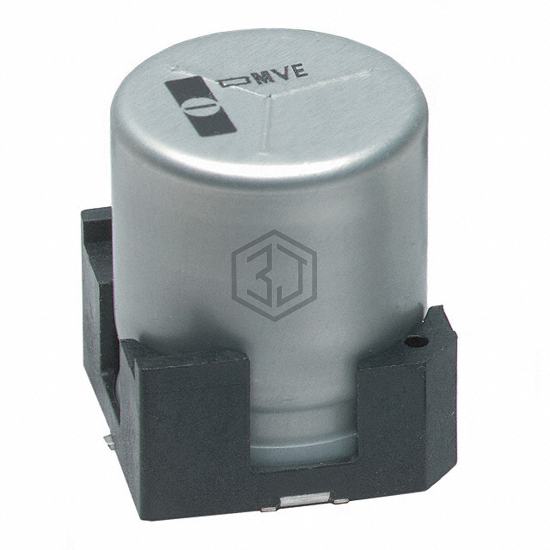

MVE35VE222MM22TR is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 7,042
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 181mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.45 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
MVE35VE222MM22TR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VZH222M1CTR-1616S | SURGE | CAP ALUM 2200UF 20% 16V SMD | 56% | View |
| PEV227KLL4210QE4 | KEMET | ALUMINUM ELECTROLYTIC, VERTICAL | 56% | View |
| EEE-TP1V182V | Panasonic Electronic Components | CAP ALUM 1800UF 20% 35V SMD | 54% | View |
| EEE-TP1V182M | Panasonic Electronic Components | CAP ALUM 1800UF 20% 35V SMD | 54% | View |
| MAL224699012E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 35V SMD | 54% | View |
| 25TLV2200M18X16.5 | Rubycon | CAP ALUM 2200UF 20% 25V SMD | 50% | View |
Submit your RFQ for MVE35VE222MM22TR and get a quote within 24 hours.
