CAP ALUM 2200UF 20% 25V SMD

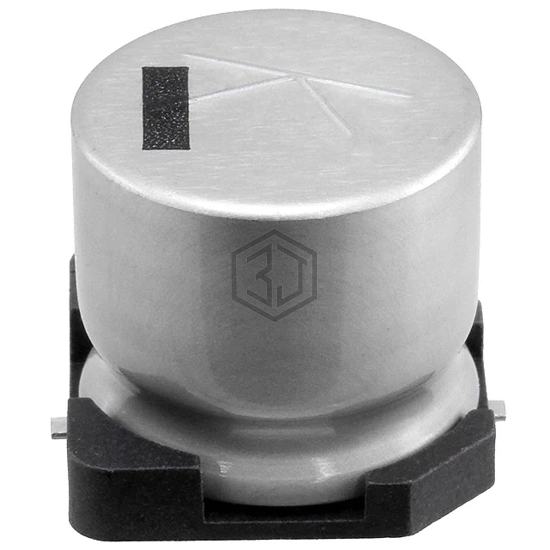

25TLV2200M18X16.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 2200UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 6,028
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.236 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.06 A @ 100 kHz |
| Impedance | 44 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AFK228M25P44VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 25V SMD | 94% | View |
| EEE-FK1V222SV | Panasonic Electronic Components | CAP ALUM 2200UF 20% 35V SMD | 84% | View |
| VZH222M1VTR-1821S | SURGE | CAP ALUM 2200UF 20% 35V SMD | 82% | View |
| 865080463017 | Würth Elektronik | CAP ALUM 2200UF 20% 25V SMD | 79% | View |
| MAL224699012E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 35V SMD | 78% | View |
| VZH222M1CTR-1616S | SURGE | CAP ALUM 2200UF 20% 16V SMD | 68% | View |
Submit your RFQ for 25TLV2200M18X16.5 and get a quote within 24 hours.
