CAP ALUM 1000UF 20% 50V RADIAL

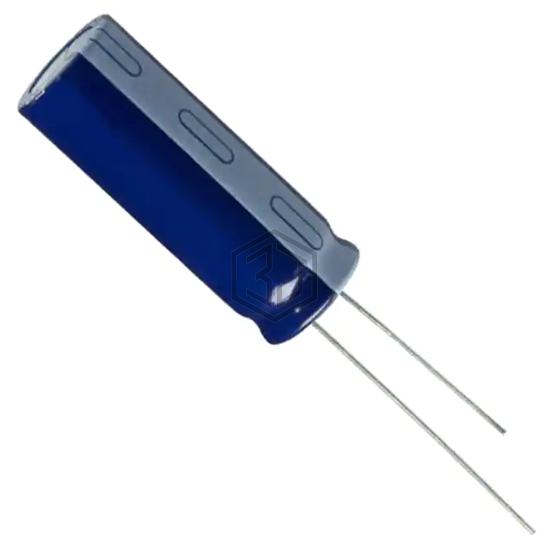

LXZ50VB102M12X40LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1000UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 5,976
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.5 A @ 100 kHz |
| Impedance | 29 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
LXZ50VB102M12X40LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 678D108M050FV5J | Vishay Sprague | CAP ALUM 1000UF 20% 50V RADIAL | 96% | View |
| MAL214668102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 63V RADIAL | 85% | View |
| MAL213691106E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 81% | View |
| RXK102M1VBK-1620S | SURGE | CAP ALUM 1000UF 20% 35V RADIAL | 79% | View |
| SEK102M063ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 63V RADIAL | 78% | View |
| 50PX1000MEFC12.5X25 | Rubycon | CAP ALUM 1000UF 20% 50V RADIAL | 76% | View |
Submit your RFQ for LXZ50VB102M12X40LL and get a quote within 24 hours.
