CAP ALUM 3900UF 20% 25V RADIAL

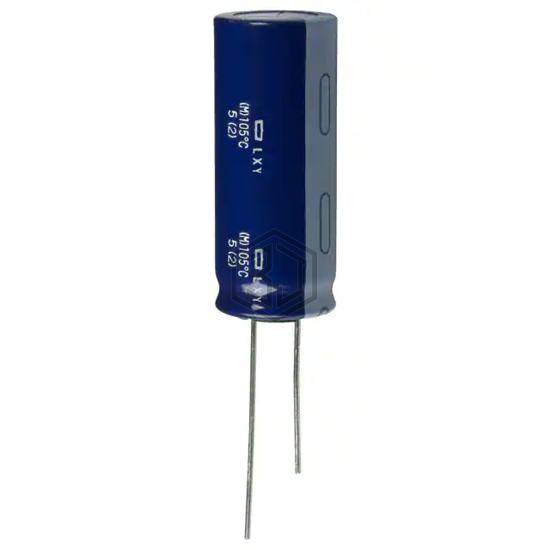

LXY25VB392M16X40LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3900UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,266
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.175 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.9 A @ 100 kHz |
| Impedance | 18 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
LXY25VB392M16X40LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL224666392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 25V RADIAL | 93% | View |
| ELXZ160ELL392MK40S | United Chemi-Con | CAP ALUM 3900UF 20% 16V RADIAL | 87% | View |
| RXW392M1CBK-1625S | Surge | CAP ALUM 16V POLAR | 79% | View |
| 860080278023 | Würth Elektronik | CAP ALUM 3900UF 20% 10V RADIAL | 74% | View |
| UPA0J392MHD | Nichicon | CAP ALUM 3900UF 20% 6.3V RADIAL | 72% | View |
| B41605E7398M8 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 40V RADIAL | 54% | View |
