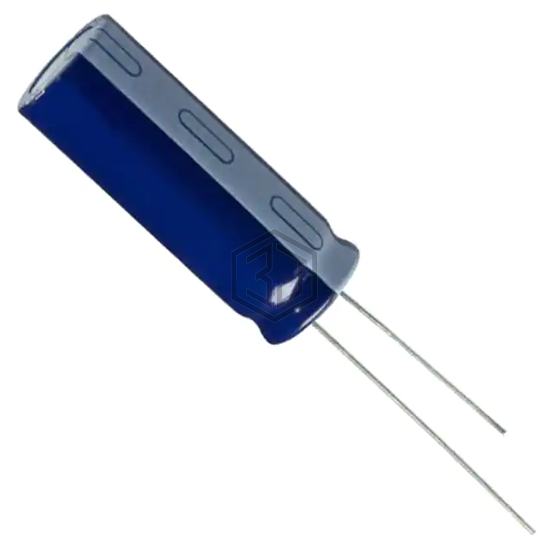

CAP ALUM 3900UF 20% 16V RADIAL
ELXZ160ELL392MK40S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3900UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,113
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 2.1525 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.87 A @ 100 kHz |
| Impedance | 17 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RZW392M1CBK-1625S | Surge | CAP ALUM 16V POLAR | 96% | View |
| RXW392M1CBK-1625S | Surge | CAP ALUM 16V POLAR | 91% | View |
| MAL224635392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 16V RADIAL | 89% | View |
| LXY25VB392M16X40LL | United Chemi-Con | CAP ALUM 3900UF 20% 25V RADIAL | 87% | View |
| RXW392M1CBK-1820S | Surge | CAP ALUM 16V POLAR | 87% | View |
| 860080278023 | Würth Elektronik | CAP ALUM 3900UF 20% 10V RADIAL | 80% | View |
Submit your RFQ for ELXZ160ELL392MK40S and get a quote within 24 hours.
