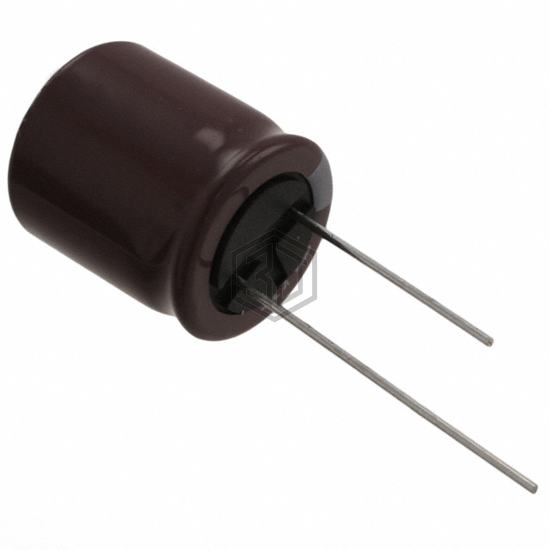

CAP ALUM 680UF 20% 100V RADIAL
KZE100VB681M18X35LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 680UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 6,797
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.32 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.2 A @ 100 kHz |
| Impedance | 27 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KZE100VB681M18X35LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100ZLH680MEFC18X35.5 | Rubycon | CAP ALUM 680UF 20% 100V RADIAL | 91% | View |
| 63ZLH680MEFCG412.5X35 | Rubycon | CAP ALUM 680UF 20% 63V RADIAL | 79% | View |
| EEU-FM1E681B | Panasonic Electronic Components | CAP ALUM 680UF 20% 25V RADIAL | 73% | View |
| B43252D1687M | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 160V SNAP | 71% | View |
| 50ZLH680MEFCG412.5X30 | Rubycon | CAP ALUM 680UF 20% 50V RADIAL | 68% | View |
| LGU2P681MELA | Nichicon | CAP ALUM 680UF 20% 220V SNAP | 67% | View |
