CAP ALUM 680UF 20% 220V SNAP

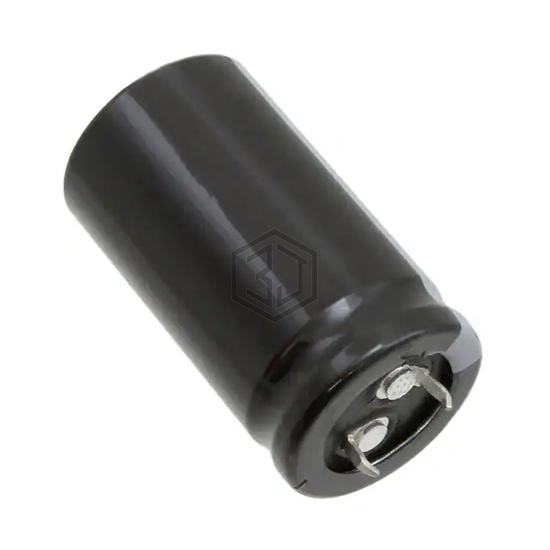

LGU2P681MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 220V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 220 V, package / case Radial, Can - Snap-In.
In Stock: 4,146
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 220 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.78 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.67 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200MXC680MEFCSN30X30 | Rubycon | CAP ALUM 680UF 20% 200V SNAP | 97% | View |
| LKX2E681MESB40 | Nichicon | CAP ALUM 680UF 20% 250V SNAP | 92% | View |
| 100ZLH680MEFC18X35.5 | Rubycon | CAP ALUM 680UF 20% 100V RADIAL | 74% | View |
| EEU-FM1E681B | Panasonic Electronic Components | CAP ALUM 680UF 20% 25V RADIAL | 72% | View |
| 63ZLH680MEFCG412.5X35 | Rubycon | CAP ALUM 680UF 20% 63V RADIAL | 65% | View |
| B41692B8687Q001 | EPCOS - TDK Electronics | CAP ALUM 680UF 63V AXIAL | 57% | View |
