CAP ALUM 680UF 20% 10V RADIAL

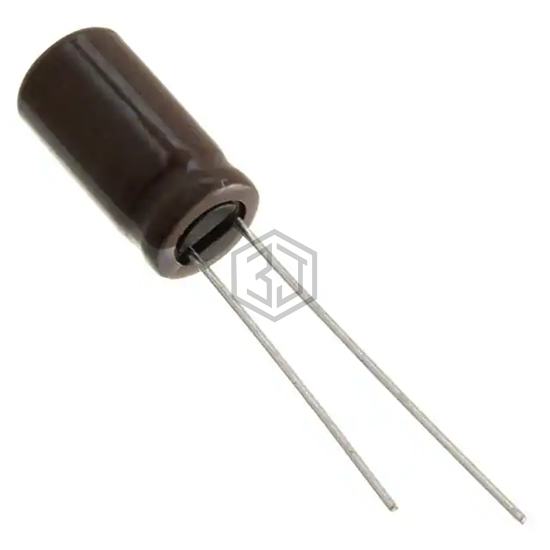

KY10VB681M8X15LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 680UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 2,355
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 504 mA @ 120 Hz |
| Ripple Current @ High Frequency | 840 mA @ 100 kHz |
| Impedance | 87 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KY10VB681M8X15LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213634681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 10V RADIAL | 96% | View |
| EKYA160ELL681MJC5S | United Chemi-Con | CAP ALUM 680UF 20% 16V RADIAL | 85% | View |
| B41890A4687M | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 16V RADIAL | 76% | View |
| 50WXA680MEFCGC16X16 | Rubycon | CAP ALUM 680UF 20% 50V RADIAL | 70% | View |
| 10ZLK680M10X12.5 | Rubycon | CAP ALUM 680UF 20% 10V RADIAL | 69% | View |
| EEU-HD1H681S | Panasonic Electronic Components | CAP ALUM 680UF 20% 50V RADIAL | 69% | View |
